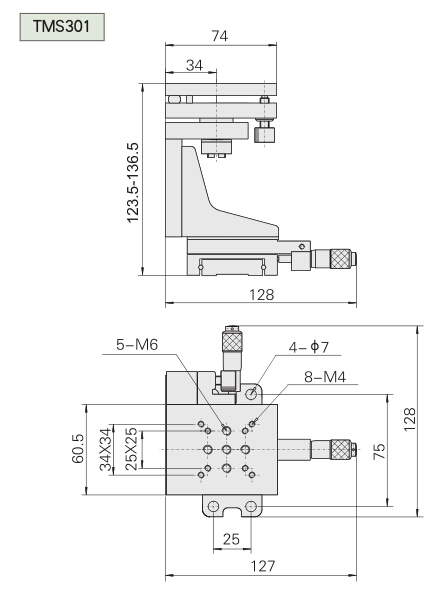

TMS301 series multi-axis positioning stages

1.The stages allow for 5-axis adjustments.

2.High precision linear ball guides are used.

3.Three translation axis movements are driven by three individual micrometer heads.

4. Pitch and yaw adjustments are drivenwith two M6X0.25 fine teeth screw rods.

5.Separate models are available for right-hand and left-hand use.
